Audio Design Pro PMU Combo
Microfone sem fios: 665 a 684,75 MHz, 100 canais; potência selecionável 5/10 mW; emissor com 2 pilhas AA
Monitorização in-ear: 640 a 664,750 MHz; 100 canais no grupo 1 e 10 no grupo 2
Áudio in-ear: 30 Hz a 18 kHz; distorção inferior a 0,5%; relação sinal/ruído superior a 90 dB
Proteção: Limitador na saída para auriculares
Alcance indicado: 100 m em campo livre
Bodypack: 2 pilhas AA, indicador de bateria, volume e balance ajustáveis, display e Scan
Ligações: Loop Out L/R; saída XLR do microfone; saída de auscultadores com volume próprio
Antenas: Frontais, amovíveis, com conetores BNC
Formato: 1 unidade de rack
Alimentação: 12-15 V DC; transformador 230 V AC incluído

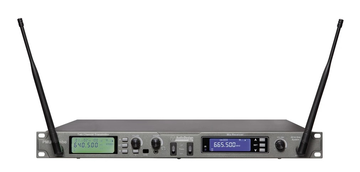

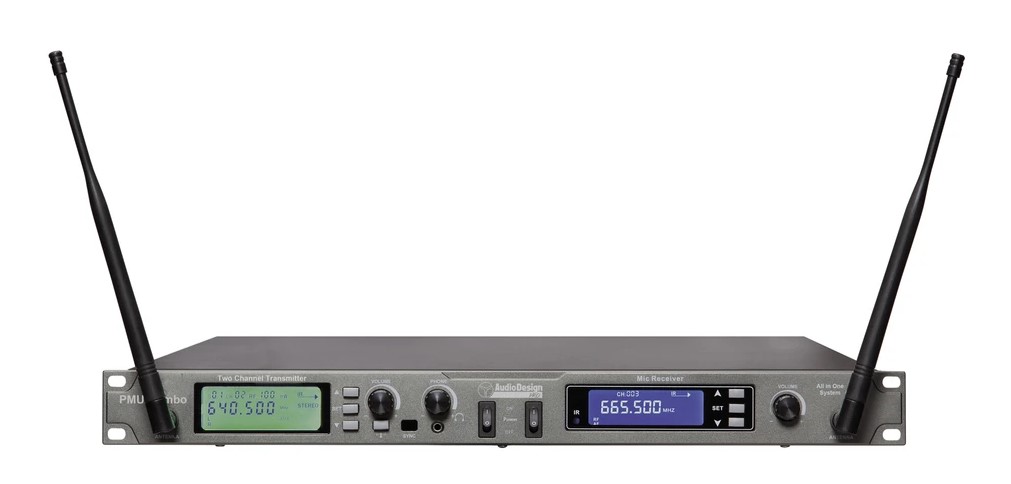

UHF Wireless Stereo In Ear Monitor System
- Frequencies: from 640.00 to 664.750 Mhz
- 100 Group 1 channels and 10 Group 2 channels
- Adjustable transmission power (10, 50 and 100 mW depending on the geographical area)
- LOOP Out L and R connection to connect other systems
- Removable antenna with BNC connector
- Size: 1/2 module
Control unit:
- Limiter on the output signal to the earphones
- Frequency response: 30 - 18,000 Hz
- Total harmonic distortion: <0.5%
- Signal to noise ratio:> 90 dB
- Frequency stability: +/- 0.005%
- Free field coverage area: 100 m
- Operating temperature: - 10 / + 50 °
- Power supply: 12-15 V DC
- 230 V AC transformer included

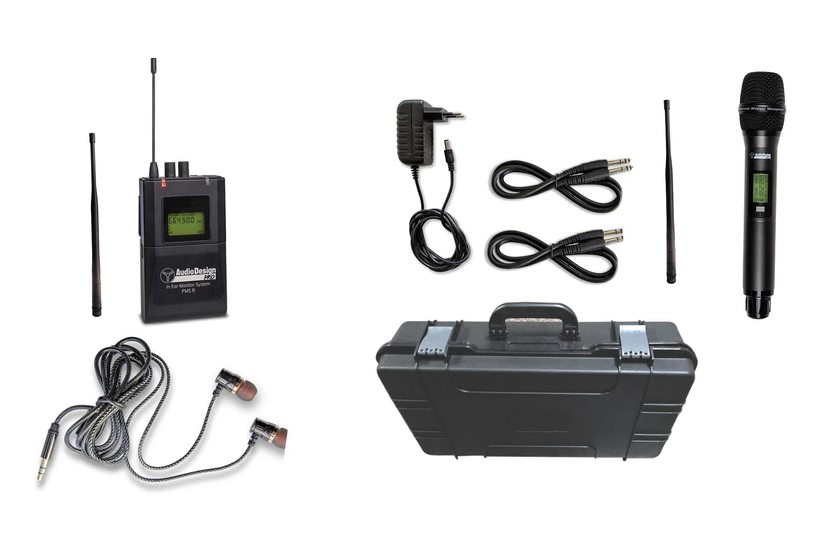

Bodypack:
- Powered by 2 AA batteries
- Battery charge indicator
- Adjustable volume and balance
- Display with all visible functions
- Possibility of using different receivers for each transmitter
- Scan function
Earphones:
- They offer a wide frequency response and a well-defined sound, with particular attention to the reproduction of even the lowest notes.
- Supplied with 3 sets of ear cup adapters.
- Silicone rubber coated cable for long life
